KYNKO Power Tools products
Products
Home Air Compressor

Refrigerated Air Dryer

Industrial Type Energy Saving Refrigerated Air Dryer

Industrial Type Energy Saving Refrigerated Air Dryer

KYNKO refrigerated air dryers, designed as the best combination which connected with screw air compressor,scroll air compressors.,etc  to remove moisture and humidity from the air. High quality Compressor Air Dryers ensure the perfect production and manufacturing environment.

  • Brand:

    KYNKO
  • Item No.:

    MT-7.5AC~ MT-600AC
product details

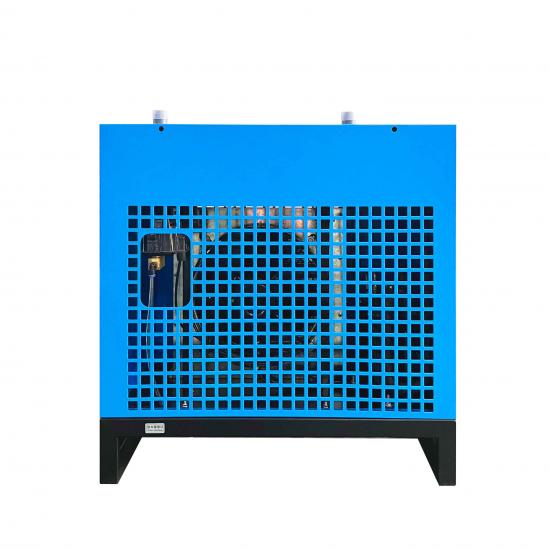

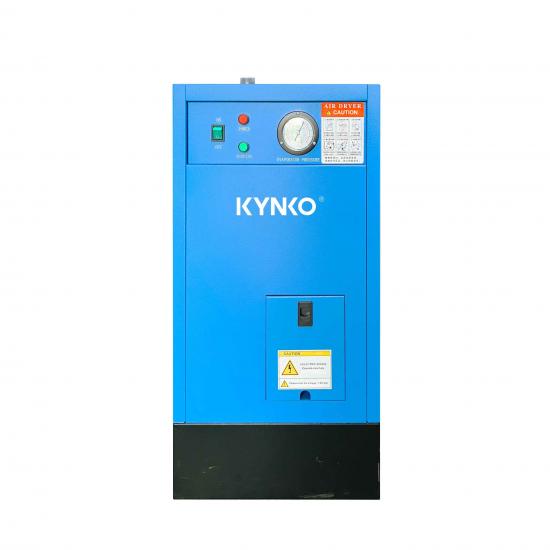

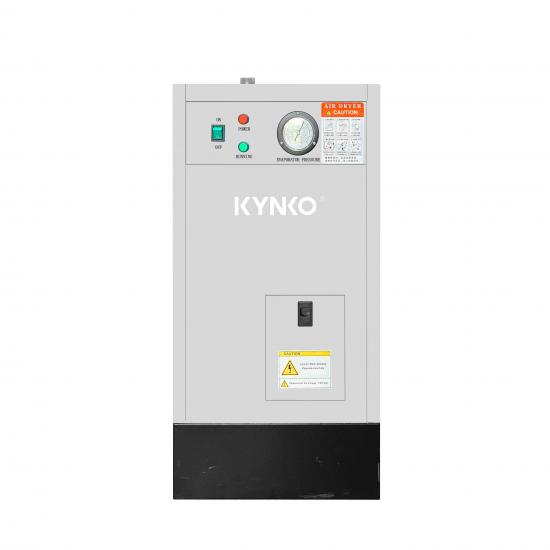

Refrigerated Air Dryers For Air Compressors



The refrigerated air dryers are widely use for the industry such as heavy-duty industry, manufacturing, medical, food and beverage. Refrigerated dryers can prevent  many systems and equipment from damage caused by moisture, ensure the high air quality and process higher efficiency, and extend equipment better service-life.

KYNKO Air Dryers offer serveral advantages in compressed air treatment. These advanced dryers efficiently eliminate moisture from compressed air, ensuring a dependable and clean air supply for diverse applications.

.

  • High efficiency and energy saving

     The compact dryer uses advanced drying technology to quickly evaporate the moisture in the material, greatly reducing the time required for drying and improving the overall drying efficiency.

Wide Applications Refrigerated air dryers have in compressed air systems, generators, instrumentation, air tools, and spray applications.

  •  Space-saving Design

KYNKO Air Dryers special compact design, easy to place in laboratories, universities or research and development institutions,saving space and making them easy to move and install. This makes

it easier to operate in limited experimental environments.

  • Ease of operation

Designed for researchers working in scientific laboratories, these devices are usually simple and intuitive to operate, allowing researchers to easily master and perform the drying process.

  •  Easy To Move And Install

The compact dryer is designed to be easy to operate in a limited experimental environment. It is also easy to move and install to adapt to different working environments and needs.







Model  MT-7.5AC MT-10AC MT-15AC MT-20AC MT-30AC MT-60AC  MT-75AC
Capacity  (m³/min) 1.2 1.95 2.2 2.6 3.8 6.5 9.5
Utilization Conditions

 A. The max Temp at the inlet:80°C,

 B. The max ambinent Temp: 45°C,

C. Working Pressure: 10 Bar (Pressure more than 10 Bar can be specialized)

Dew Point Temp +2℃ ~ +10℃
Refrigerant  R22/R407C/R134A
 Compressor Power  0.5HP 0.5HP 0.75HP 0.75HP 1HP 1.5HP 2HP
Power  AC 1 220V 50HZ
Dia of  Air Inlet/ Outlet 1'' 1'' 1'' 1-½'' 2-½''
Dimension(mm) 70*42*41 70*42*76 100*50*85 100*50*90 125*57*101
Weight (Kg) 40 45 50 60 100 120 180



Model  MT-100AC MT-150AC MT-200AC MT-300AC MT-400AC MT-500AC  MT-600AC
Capacity   (m³/min) 13 19.5 26 39 49 65 76
Utilization Conditions

 A. The max Temp at the inlet:80°C,

 B. The max ambient Temp: 45°C,

C. Working Pressure:10Bar ( Pressure more than 10 Bar can be specialized)

Dew Point Temp +2℃ ~ +10℃
Refrigerant  R22/R407C/R134A
 Compressor Power  3HP 4HP 5HP 7.5HP 8HP 10HP 12.5HP
Power  AC  3   380V 50HZ
Dia of  Air Inlet/ Outlet 2-½'' 3'' 3'' 4'' 4'' 5'' 5''
Dimension(mm) 125*57*111 140*63*119 140*63*124 180*70*140 180*70*140 200*70*140 200*80*150
Weight (Kg) 200 300 320 400 450 600 630
