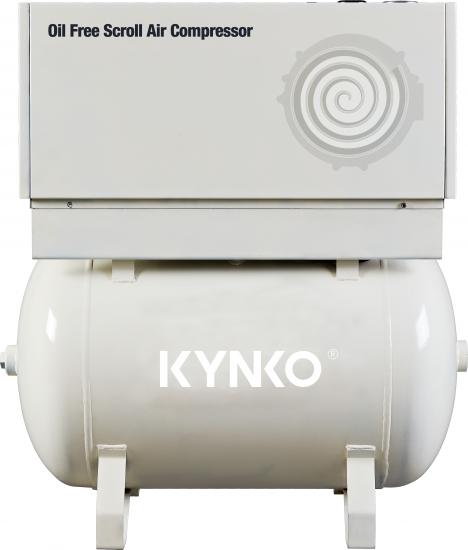

Portable Oil Free Scroll Air Compressor

KYNKO Portable tank mounted scroll air compressor supply with 0 CLASS oil-free air, widely use for new energy and utilities, medical and dental, automotive industry, laboratories and research institutions, food and beverage, construction industry, industrial manufacturing, etc.We provide top professional quality full range air compressors,parts, and related requirements.

Brand:
KYNKO
Item No.:
MT-S22F~MT-S37F

product details

Portable Oil-free scroll air compressors

KYNKO Portable Oil-free scroll air compressors offered several significant advantages.It operates oil-free, ensuring clean compressed air without contamination. Secondly, its compact design makes it portable and suitable for a variety of applications and locations. The important point, its low noise level contributes to a quieter working environment. Finally, the compressor is reliable and energy efficient, saving costs and increasing productivity.

KYNKO Air Compressor Benefits

Clean and Pure oil-free Air
Supply 100% oil free pure & clean air.
Intelligent Control for air compressor
Top professional quality smart controller. Digital maintenance monitor displays operating conditions, warnings and cautions. Automatic power failures and rest function ensure convenient work.
Smart and compact design
KYNKO's unique design, smart working & compact structure.
Low working noise and small vibration
Silent operation and very low vibration suitable for more workplaces.
Air Tank Mounted Type

KYNKO Portable Oil free scroll compressor Schematic Diagram

Portable oil free scroll compressor

The turbine rotor turns in a sequence of Picture A- B-C-D, the air is sucked into the space between the turbine stator and turbine rotor,

the volume of the crescent-shaped (in point symmetry) compression chamber gradually decreases, compressed air is discharged through the air outlet of the central portion.

Portable oil free scroll compressor working principle

Model	Power（Kw/Hp）	Electricity	Working Pressure (Mpa)	Free Air Delivery (L/min)	Tank Volume（L）	Air Outlet Pipe Diameter (inch )	Dimension	Weight (Kg)	Noise Level
MT-S22F	2.2/3	(380V/50HZ/3P) (415V/50HZ/3P) (220V/60HZ/3P) (460V/60HZ/3P)	0.8	0.24	20-80L	G1/2	8106101360(mm)	218	65
MT-S30F	3.0/4			0.30				225
MT-S37F	3.7/5			0.40				235
