KYNKO Power Tools products
Products
Home Air Compressor

Silent Oil Free Scroll Air Compressor

Silent Oil Free Scroll Air Compressor

Silent Oil Free Scroll Air Compressor

KYNKO provides Oil-free scroll air compressors, solutions, services, spare parts, and materials for almost every industry.

KYNKOs partners mainly from the industries in new energy and utilities, medical and dental, automotive industry, laboratories and research institutions, food and beverage, construction industry, industrial manufacturing, etc.

KYNKO cooperates with China's largest bus company to provide safe and stable compressed air solutions for new energy vehicles and rail transit braking systems. We offer good commercial value, superior product quality and user-friendliness for distributors and end customers.



  • Brand:

    KYNKO
  • Item No.:

    MT-S75F~MT-S300F
product details

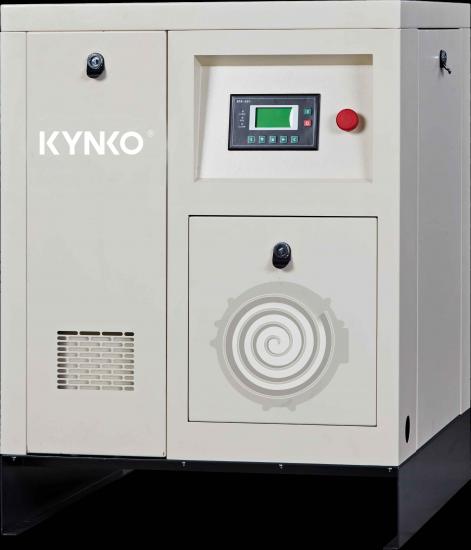

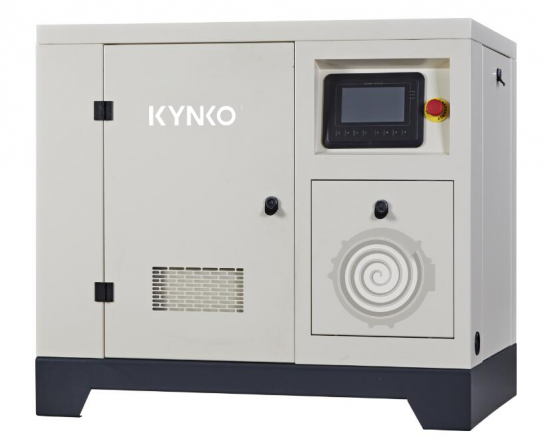

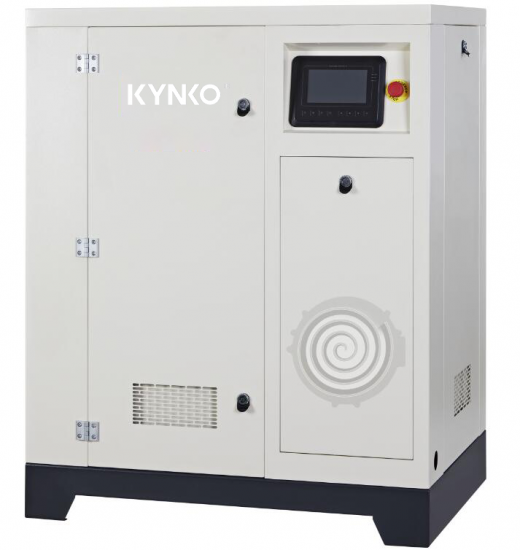

Silent Oil-free Scroll Air Compressor

1.KYNKO silent oil-free scroll air compressor 100% pure air is indispensable for sensitive industry sector, for example: medical, laboratory, biological sciences,etc.



2. The scroll compressor ensure these industries high purity compressed air. The scroll technology helps people to save the costs as the different structure of the machines.



3. No need to change the consumable parts like filters. As we all know, air compressors with scroll structure can avoid pressure loss caused by filters.Our oil-free scroll compressor is specially designed for food processing, dental, medical, pharmacy, laboratory, instrument, coating, chemical industry, etc.



4. KYNKO oil-free scroll compressor with clean air, intelligent Control, smart and compact design, low working noise and small vibration, safe backup air source, ensure users convenient usage.(The medical grade 304 stainless steel air receiver tank can be customized.)







KYNKO Air Compressor Benefits

  • Clean and Pure oil-free Air
    Supply 100% oil free pure & clean air.
  • Intelligent Control for air compressor
    Top professional quality smart controller. Digital maintenance monitor displays operating conditions, warnings and cautions. Automatic power failures and rest function ensure convenient work.
  • Smart and compact design
    KYNKO's unique design, smart working & compact structure.
  • Low working noise and small vibration
    Silent operation and very low vibration suitable for more workplaces.
  • Safe backup air source,Continuous air supply

 If one air end fails, the other air end starts automatically by jump control. Save labor costs and no human work at night.



KYNKO Air Compressor  Structure


Oil-free scroll compressor structure







Model  MT-S37F MT-S75F MT-S11F MT-S15F MT-S185F MT-S220F MT-S260F MT-S300F
Motor Power (Kw/Hp ) 3.7/5 7.5-3.7*2/10 11-3.7*3/15 15-3.7*4/20 18.5-3.7*5/25 22-3.7*6/30 26-3.7*7/35 30-3.7*8/40
 Electricity  (380V/50HZ/3P), (415V/50HZ/3P), ( 220V/60HZ/3P), (460V/60HZ/3P)
Control Method  Automatic on / off (Pressure Sensitive)
Driven Method  Belt Drive
Working Pressure  0.65~1.0 Mpa
Noise Level 63±2dB(A) 63±2dB(A) 64±2dB(A) 66±2dB(A) 68±2dB(A) 68±2dB(A) 68±2dB(A) 68±2dB(A)
Free Air Delivery  /Discharge Pressure (m³/min/CFM) 0.4 0.8 1.2 1.6 2.0  2.4  2.8  3.2
Dimension L (mm) 750 1100 1100 1200 1500 1500 1655 1655
W (mm) 800 800 800 850 1180 1180 1576 1576
H (mm) 980 980 1370 1430 1690 1690 1540 1540
Weight (Kg) 192 293 505 656 813 886 1043 1125
Air Outlet Pipe Diameter (inch ) G1/2 G1 G1 G1 G1.25 G1.5 G1.5 G1.5
